DESCRIPTION：

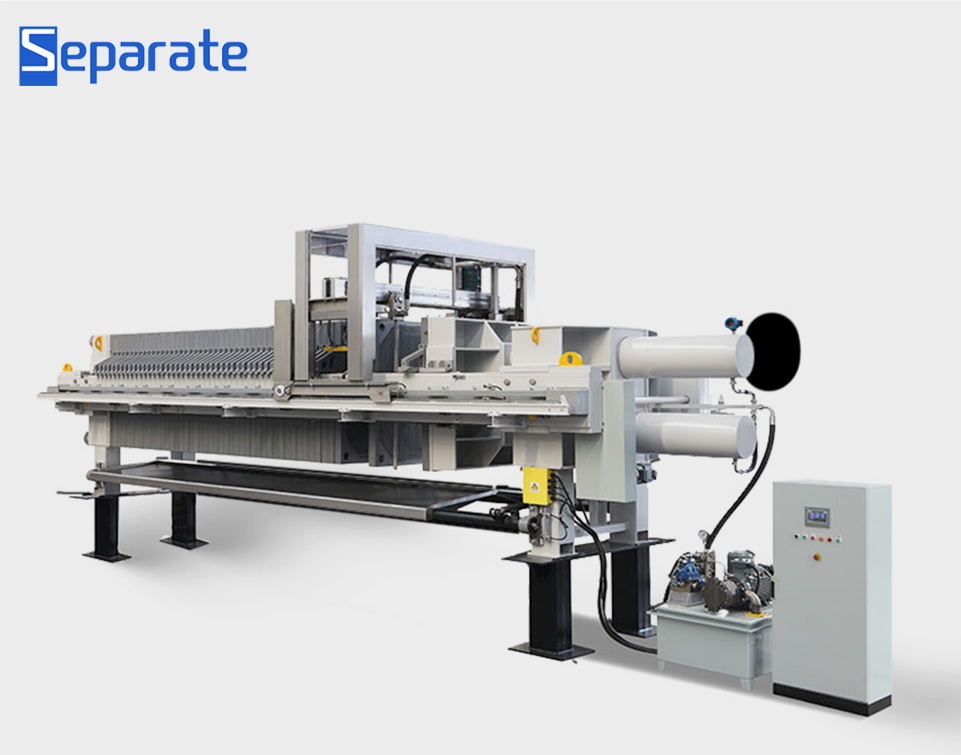

The sludge dewatering filter press uses a special filter medium to exert a certain pressure on the object to make the liquid dialysis out. It is a commonly used solid-liquid separation mechanical equipment.

APPLICATION：

It was used in chemical production in the early 18th century, and it is still widely used in chemical, pharmaceutical, metallurgy, dyestuff, food, brewing, ceramics and environmental protection industries.

FEATURES：

  • Box type, molding, with fast filtering speed, low moisturecontent of filter cake, good anti-corrosion and sealing performance.

  • In order to further reduce the moisture content of the filter residue, our company has developed a diaphragm press filter press, which greatly improves the work efficiency and economic benefits. The moisture content of the dewatered sludge cake is below 60%.

  • Hydraulic pressure, automatic pressure maintaining, automatic cleaning, diaphragm pressing and automatic pulling plate device (optional)

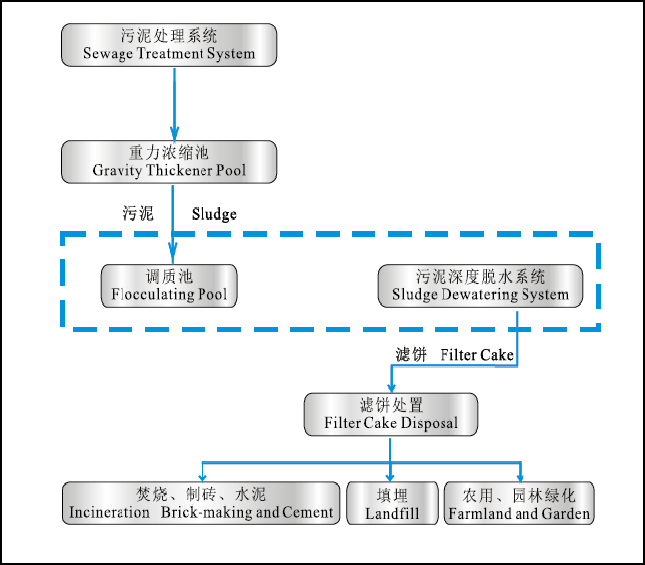

FLOW CHART：

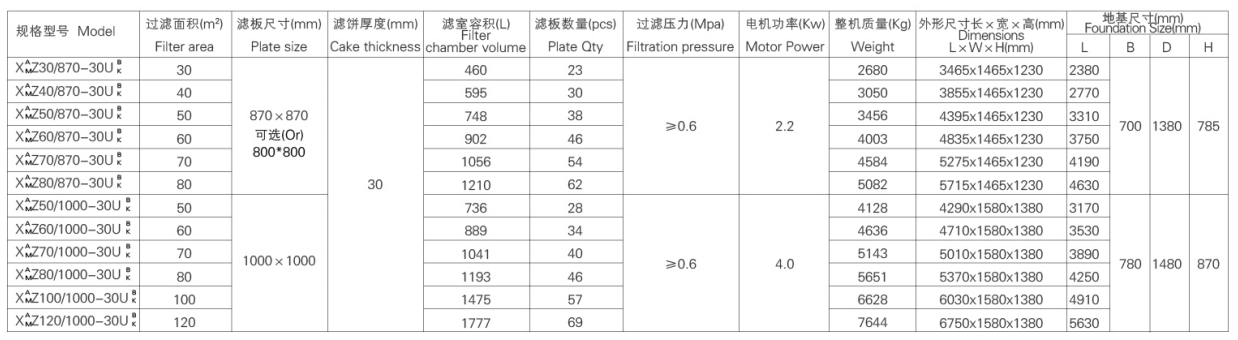

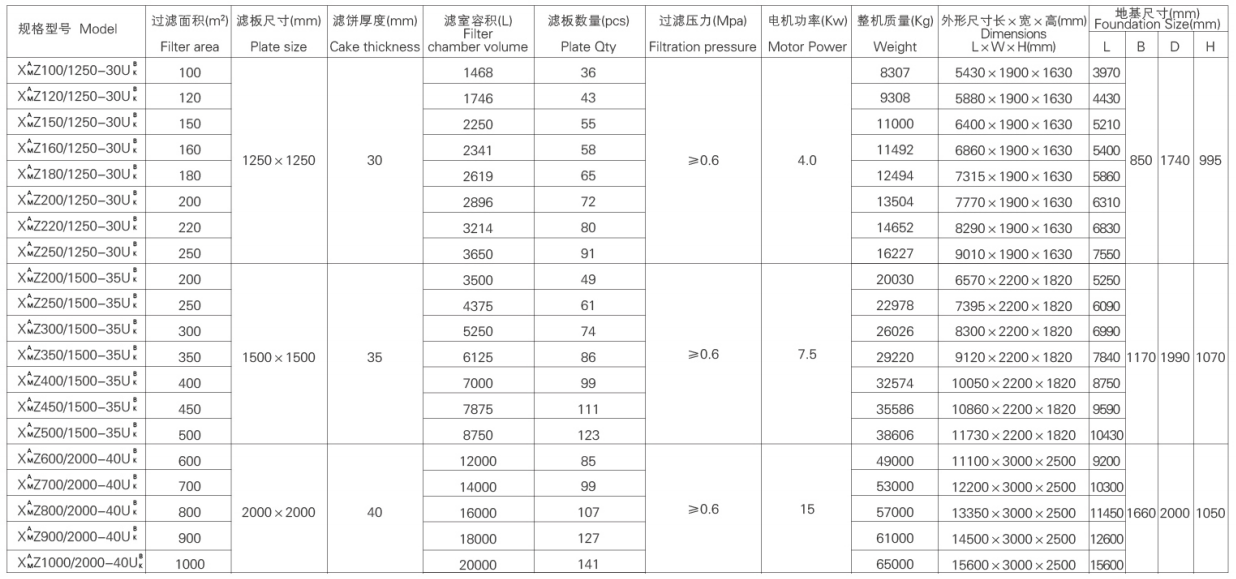

TECHNICAL PARAMETERS:



Product Design：

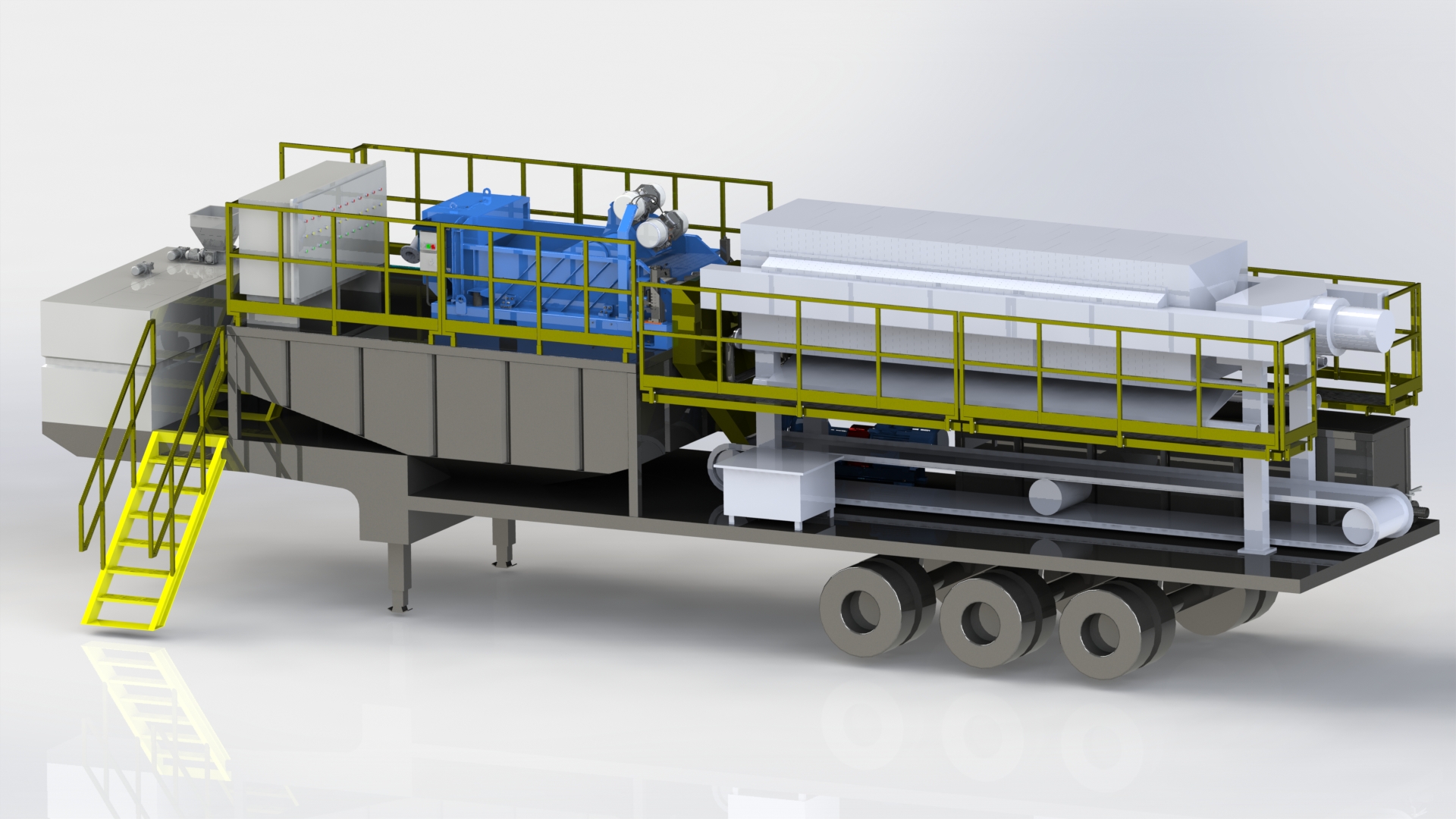

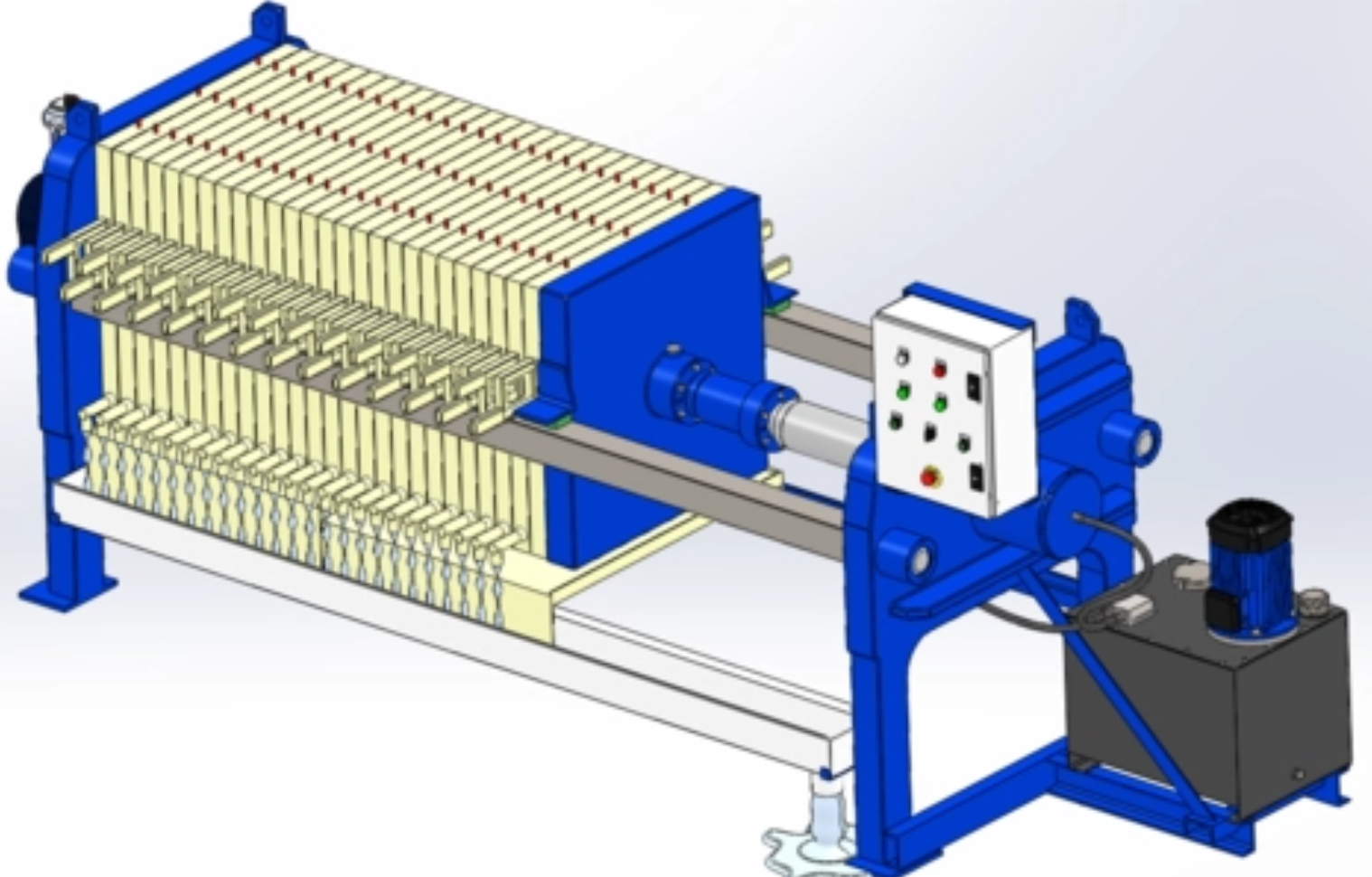

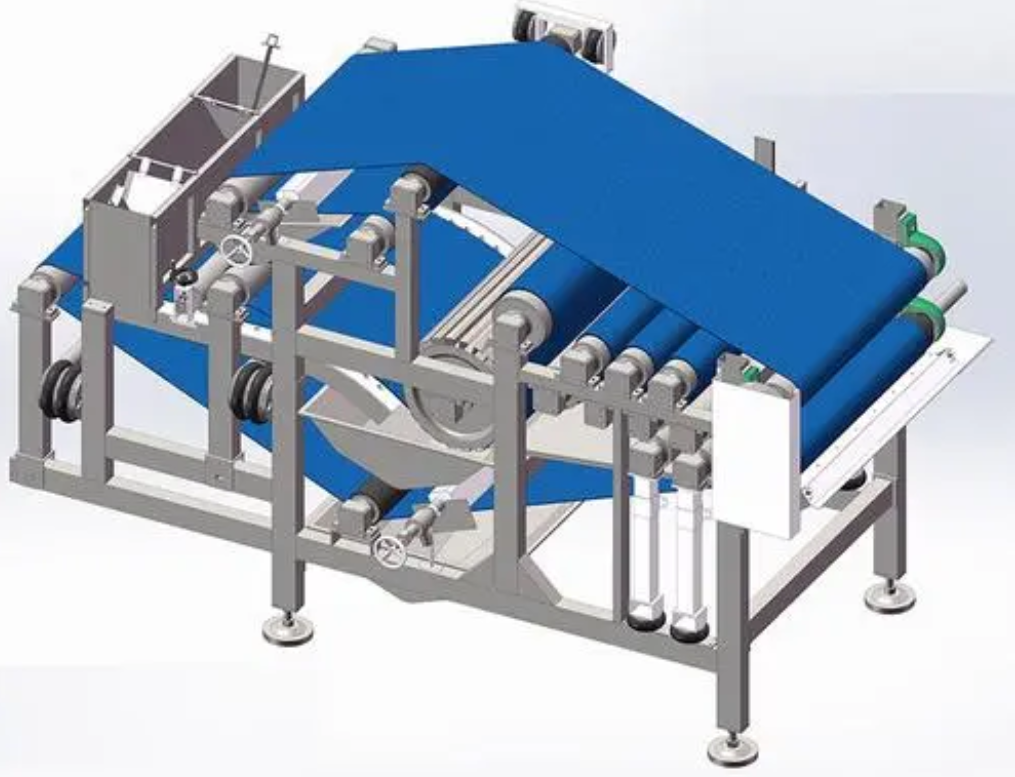

Plate and frame filter pressBelt filter pressTrailer mounted filter press
