Wastewater Treatment

DESCRIPTION：

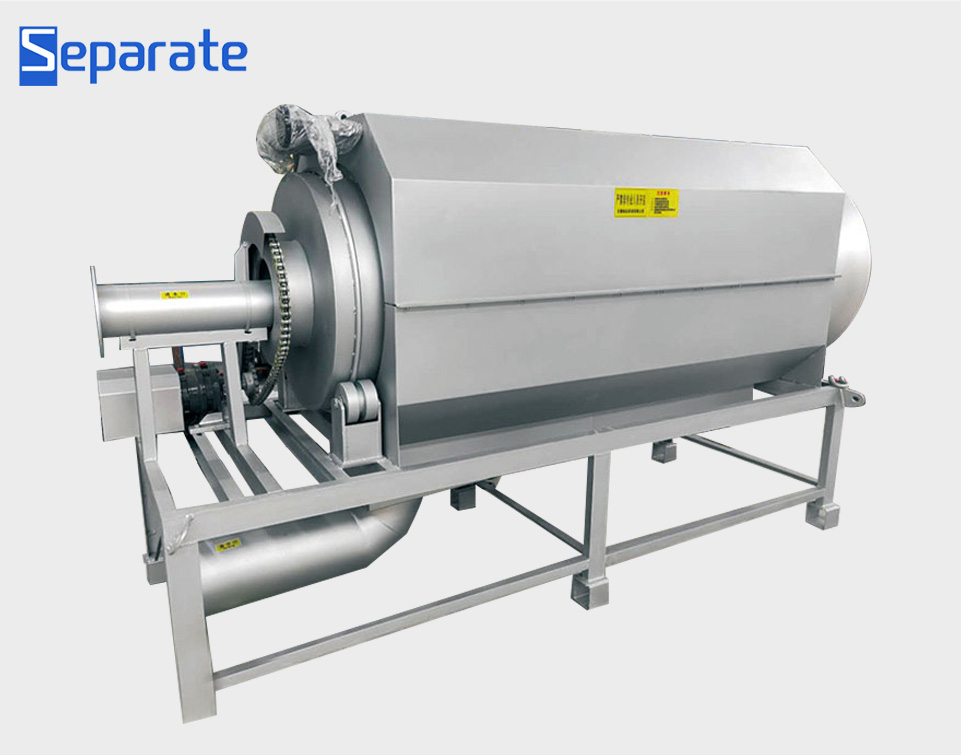

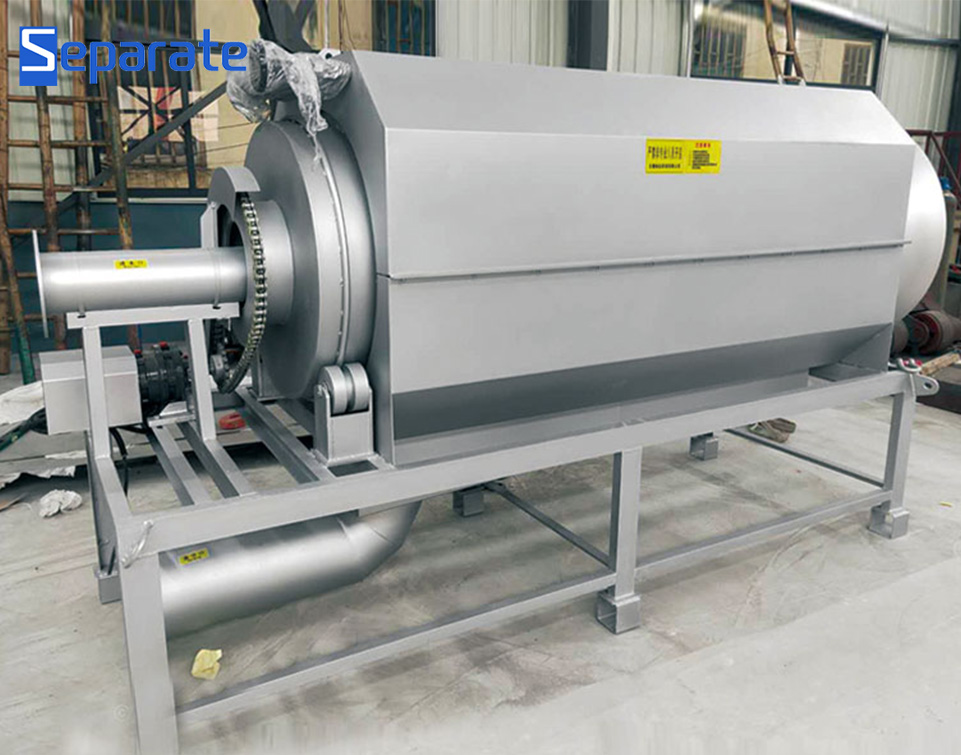

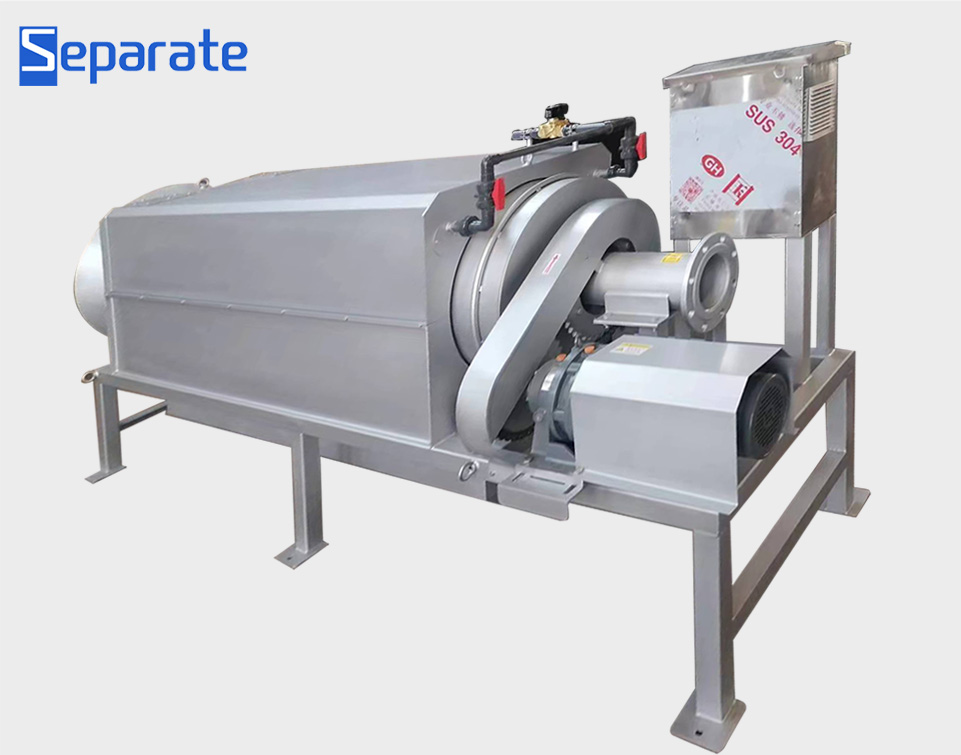

The rotary drum filter, also known as outward water drum filter, is suitable for solid-liquid separation in industrial wastewater, and can remove suspended particles larger than 0.2mm.

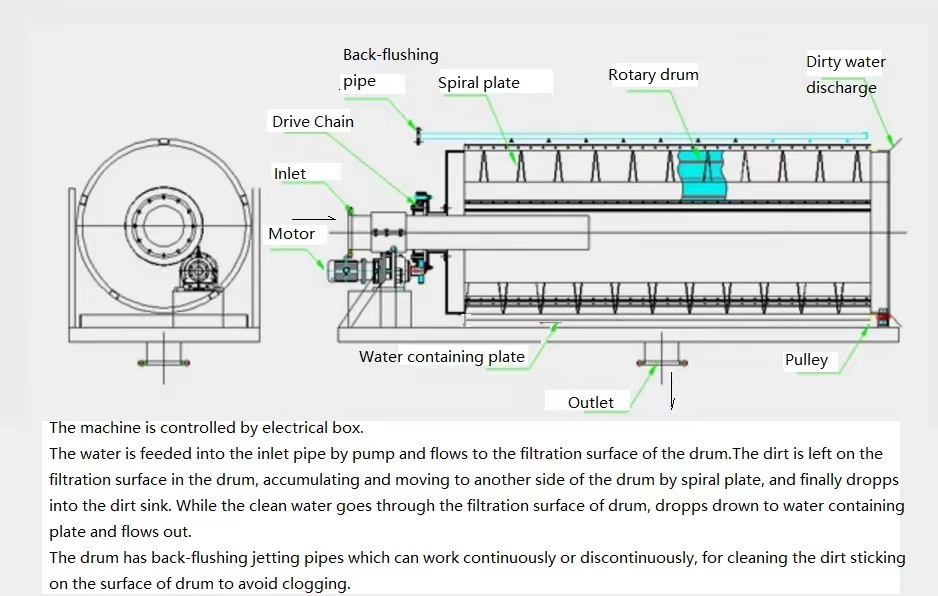

WORKING PRINCIPLE：

The wastewater is gently and evenly distributed into the rotating screen cylinder from the buffer water inlet, and by the rotation of screen and inner wall slag guide screw, the slags are discharged through the other end, and the filtered water is discharged from the gap of the drum screen.

FEATURES:

• Uniform water distribution and big capacity

• Simple structure, stable running, easy maintenance, long service life

• Use the chain transmission, with high transmission efficiency

• With reverse flushing device, reduce clogging

• Anti-overflow board on both sides to prevent water splash

TECHNICAL PARAMETERS：

Customization is available.
